JLC-PCB Notes
I saw a lot of people wanting to go with JLC PCB, so I made a dedicated help page for their particular service. (not sponsored)
Downloads
Use these files that are pre-made for JLC PCB website. In addition to the Gerber files which are common for all manufacturers.
JLC-PCB manufacturing BOM.
FindMyCat-JLC-BOM.csv
CPL (component placement)
FindMyCat-all-pos.csv
PCB Options

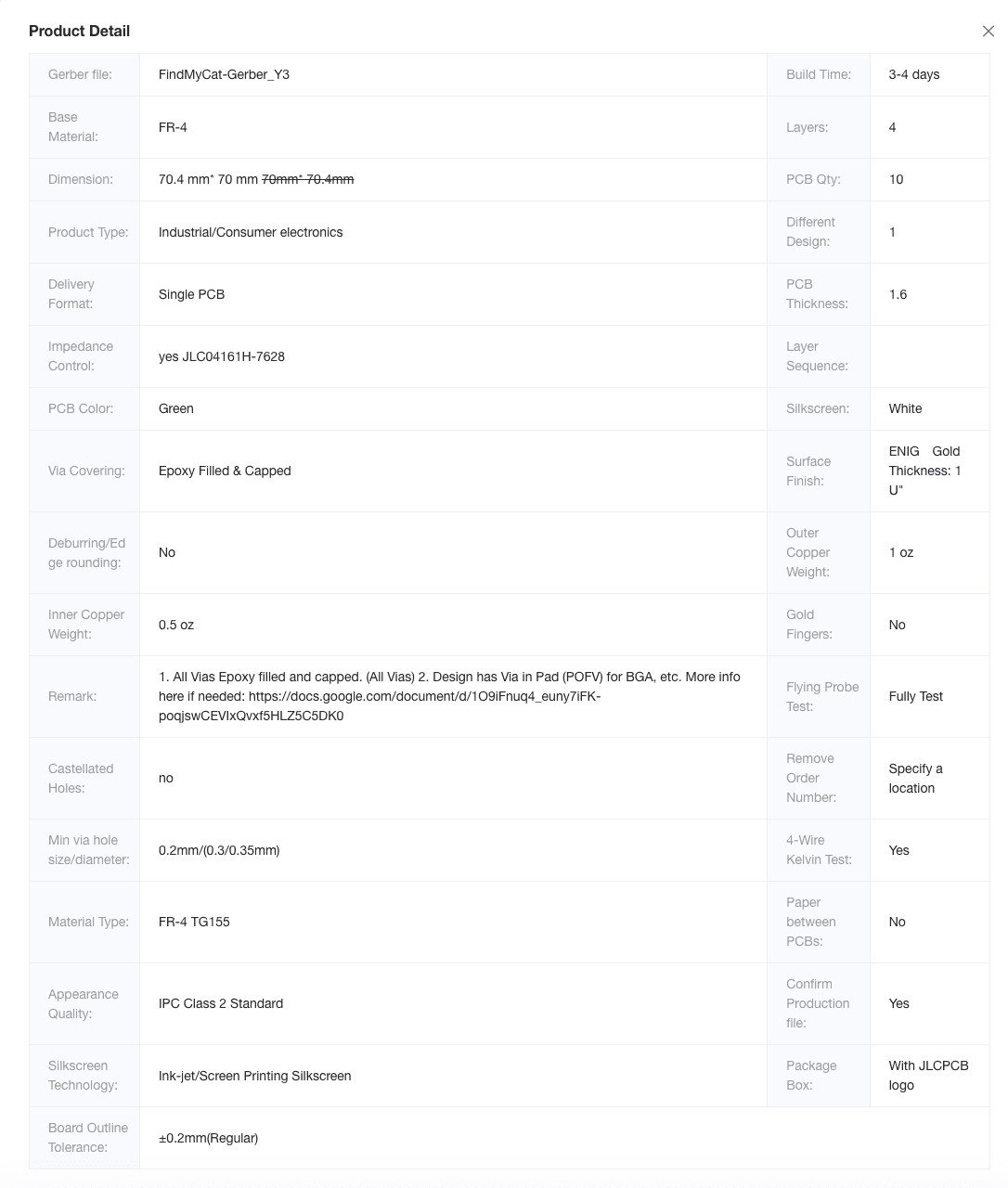

Please ensure the following match the PCB options you select during placing your order:
PCBA Options

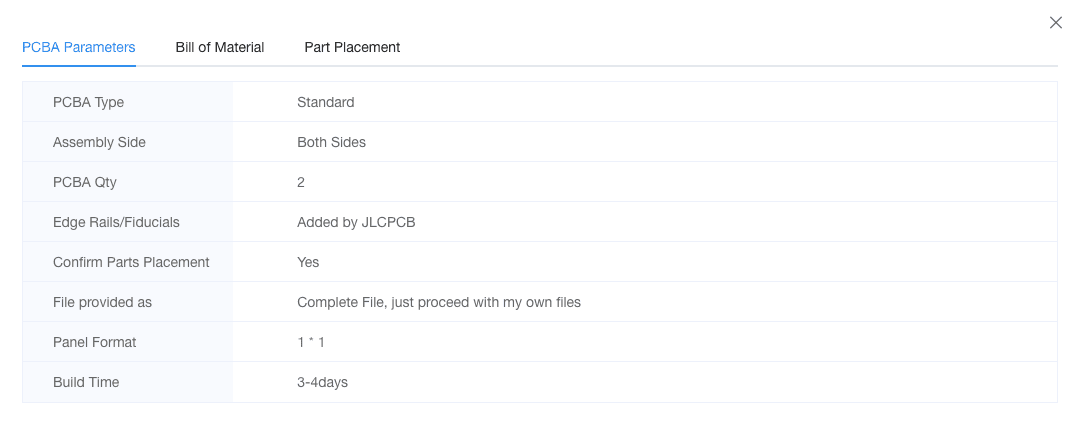

Similarly, please ensure the following match the PCBA options you select during placing your order:
You may choose to only request one side assembly to save cost and assemble the bottom side yourself as there aren't many components to solder and also they're pretty easy to hand solder compared to the BGA stuff on the top side of the PCB.
